Schedule

This option is used to create and maintain Open/Close Schedules and/or a Timer Test Schedule for the System.  Special Instructions may be linked to either a Signal Type or to a system Zone.  If linking to a Zone, the Zone setup must be completed first.

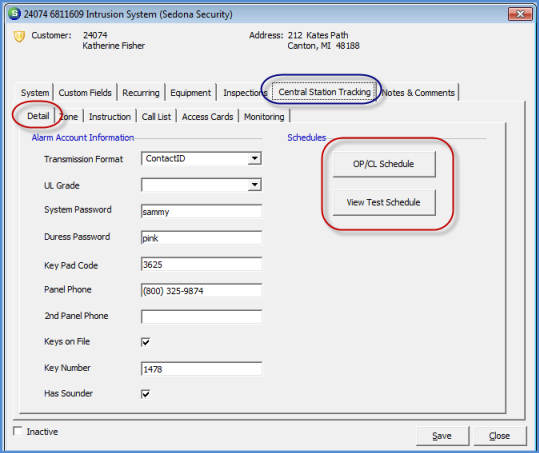

To enter or modify the System's Schedule or Test information, you must first open the System record in Edit Mode.  Once in Edit Mode, click on the Central Station Tracking tab, then click on the Detail tab.  On the Detail tab are two buttons; OP/CL Schedule and View Test Schedule.

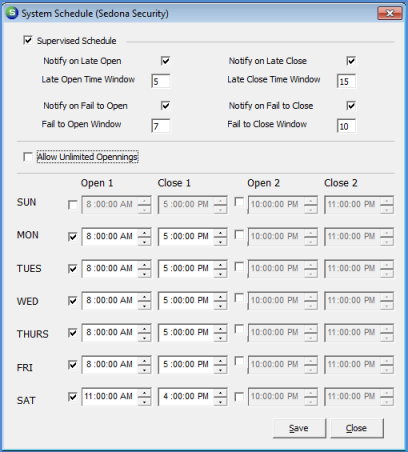

To enter an Open/Close Schedule, click on the OP/CL Schedule; enter the information and click on the Save button.

To enter Timer Test information, click on the View Test Schedule button; fill out the applicable information on the form then click on the Save button.

Remember to click on the System form Save button at the bottom right of the form (this is a double-save process).

2697-01

2697-02
